Single 5/2.5m

Applications

Schools
Recreation
Commercial
Industrial Estates
Parks
Solar Park sand Wind Farms

Features

Hard to climb
Difficult to cut through
Good delay factor
Good visibility
Cost effective

Specification

Mesh:
The panels comprise single 5mm wires and single 5mm vertical wires. The mesh is 200 x 50mm. The standard panel is 2500mm wide and is available in heights 1000mm to 2400mm as standard with an option for higher panels or multi lift

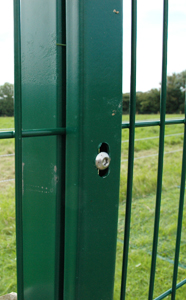

Fixings:
Individual fixing brackets. Bolts: Anti-vandal M8 x 40mm Fixings: Bolts set at 400mm max.

Option:
Unistrut fill length channel strip

Post Section:
Constructed in 60mm x 60mm x 2mm hollow section steel. Posts are set at 3000mm centres. 60 x 40mm posts with a unistrut fill length channel strip are available

Finish:
Galvanised and polyester powder coated Standard colours: RAL 6005 green, 9005 black, 5010 blue, 3000 red, 9010 white Other colours: All other RAL colours available.

Download as PDF here

Robust, easy to install fencing systems offering an aesthetically pleasing low maintenance, solution to security requirements. The combination of height, strength and appearance makes these ideal fences for a wide range of applications from commercial and industrial to educational.
