Matrix 358
Applications
Prisons
Secure Units
Embassies
Industrial
Commercial
Schools
Secure Compounds
Features
Hard to climb
Difficult to cut through
High delay factor
Good visibility
Cost effective
Specification
Mesh:
Height: 1270mm to 6000mm
Wire: 4.00mm (+/- 0.10mm) direct drawn steel wire manufactured to BS 1052 1970) with a minimum tensile strength of 550 N/mm2
Mesh size: 76.2mm x 12.7mm x 4mm Width: 2515mm Weight: Approximately 9kgs per square metre.

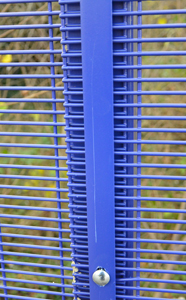

Fixings:
Full length clamp strip: 30mm x 5mm Bolts: Anti-vandal pin hex M8 x 40mm Fixings: Bolt through or threaded inserts set at 400mm max. (200mm available on request)
Post Section:
To 2100mm high: 60mm x 60mm
To 2400mm high: 70mm x 70mm To 3600mm high: 80mm x 80mm
To 5200mm high: 100mm x 50mm
To 6000mm high: 120mm x 60mm
Finish:
Hot dipped galvanised
Galvanised and polyester powder coated
Standard colours: RAL 6005 green, 9005 black, 5010 blue, 3000 red, 9010 white
Other colours: All other RAL colours available.
Download as PDF here
|

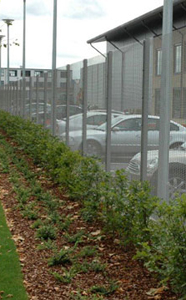

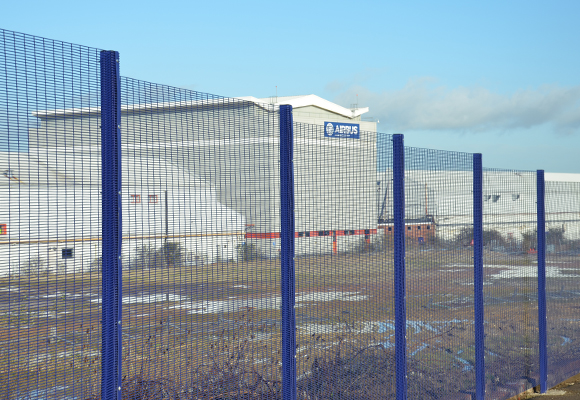

A heavy mesh panel system traditionally used in security applications for prisons and secure units, but ideally suited to environments requiring hard to climb and difficult to cut mesh. This is a low maintenance solution to a perimeter requirement and offers longevity without loss of visual appeal.
|
|
